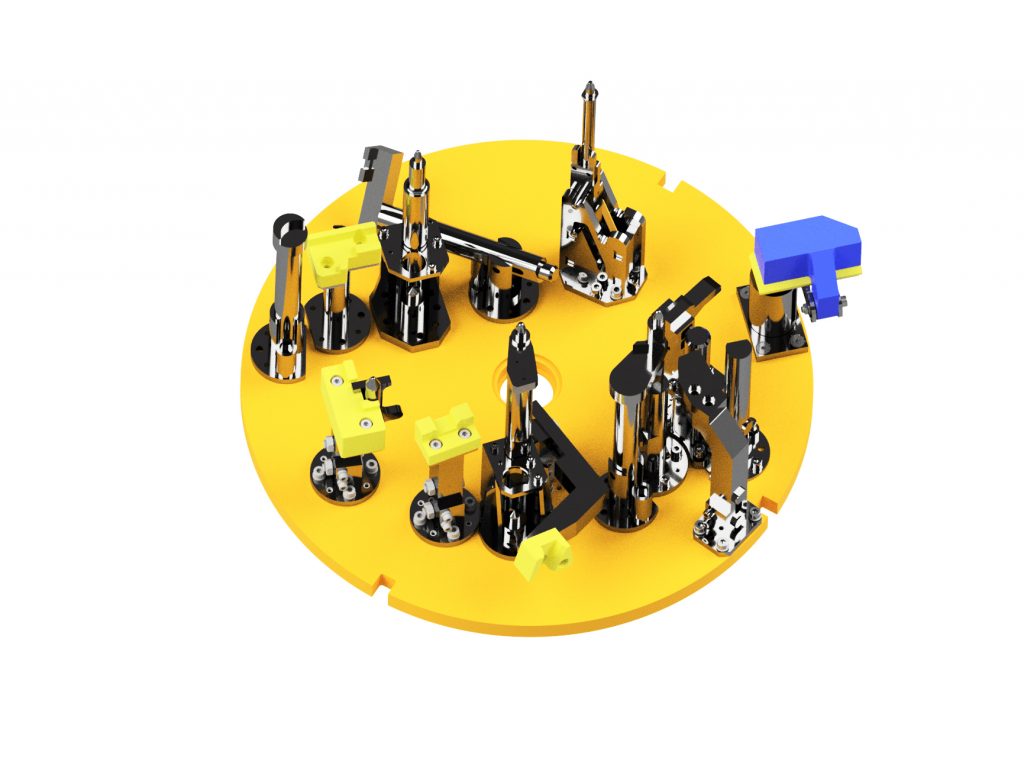

Pallet for car drive unit assembling

The aim of the project is to adjust 50 pieces of the original modular pallet, so that a new type of a drive unit - an internal combustion engine together with a transmission - can be assembled on it in addition to the original ones.

Beginning of the project 17.10.2017
End of the project 3.4.2018
Project type Assembly and work tables

Interesting facts

After the adjustment, 5 types of power units are assembled on the modular pallet. The pallet holders are foldable and adjustable, because each motor and transmission has handles and support points in different places. Therefore, before loading the drive unit, only those holders intended for the respective drive unit are tilted and the others remain in the folded position. The holders also cannot interfere with the added components or tools when attaching them.
